Description

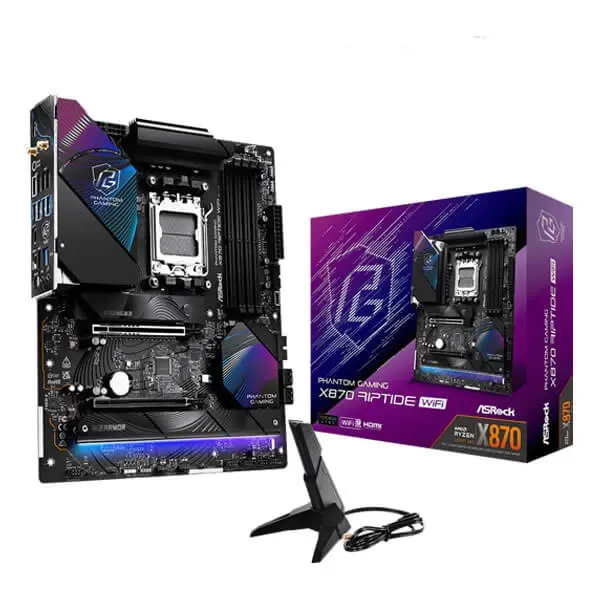

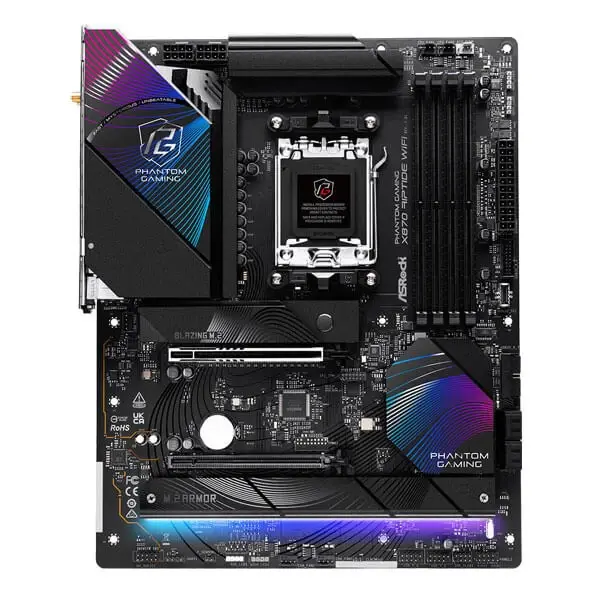

ASRock Phantom Gaming X870 Riptide WiFi AM5 ATX Motherboard
ASRock Phantom Gaming X870 Riptide WIFI Motherboard supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors and supports up to 8000MHz Memory.
Features:
- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear),7 USB 3.2 Gen1 (3 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Killer 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Specifications:
Model Number | X870 Riptide WiFi |
Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming – Killer 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter |
CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
Chipset | – AMD X870 |
Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – Individual PCB Layers for R/L Audio Channel – Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) – Nahimic Audio |
LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software |
Wireless LAN | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 160MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |
Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode ASMedia ASM1061: – 4 x SATA3 6.0 Gb/s Connectors |
RAID | – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
USB | CPU: – 2 x USB4 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) – 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) – 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) |
Connector | – 1 x Thermistor Cable Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

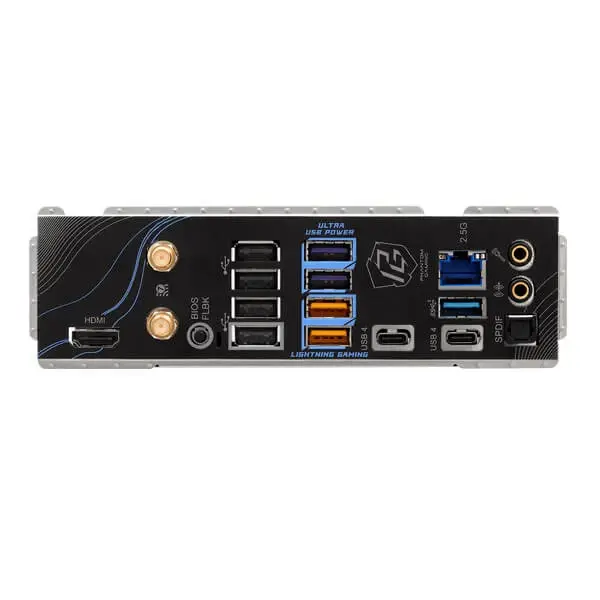

Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
Software and UEFI | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
Accessories | – 2 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 1 x Thermistor Cable |
Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB |
OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
