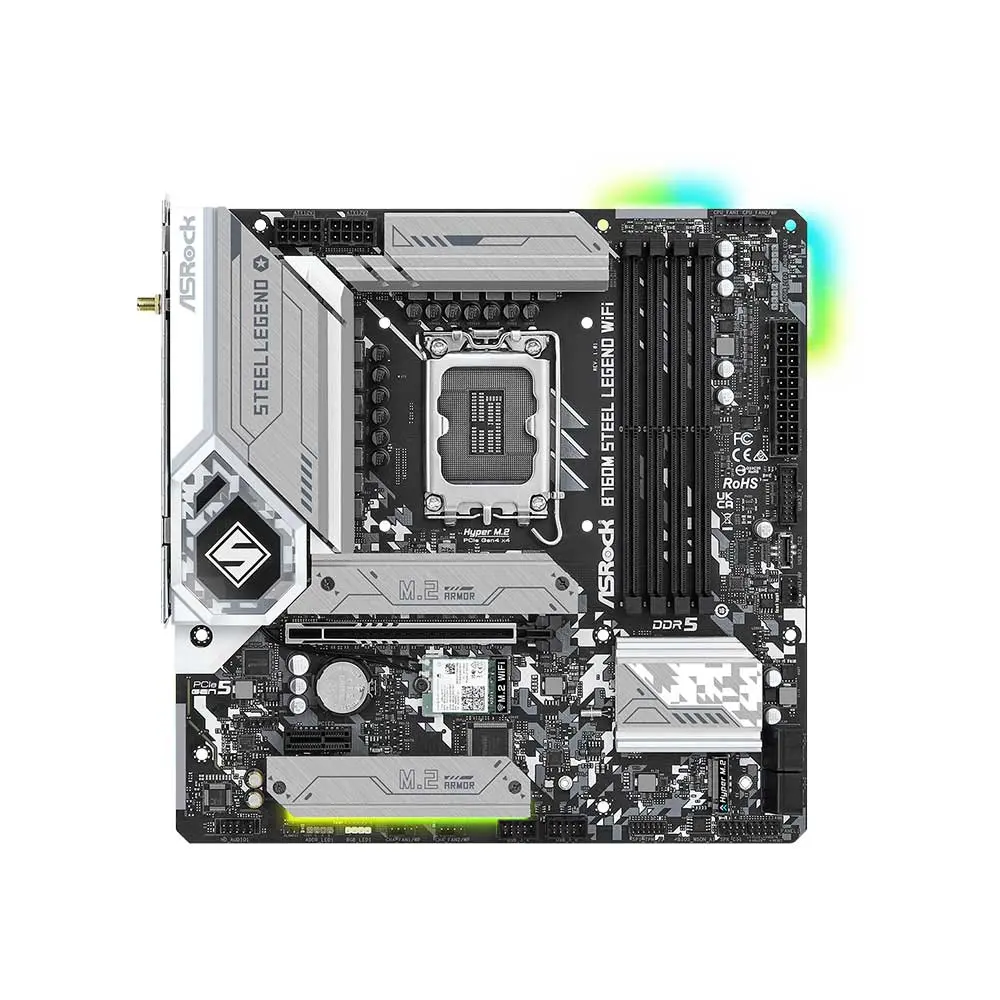

AsRock B760M Steel Legend Wifi Lga1700 Micro Atx Motherboard (B760M-Steel-Legend-WiFi)

Inclusive of all taxes

Model No : B760M-Steel-Legend-WiFi

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

AsRock B760M Steel Legend Wifi Lga1700 Micro Atx Motherboard (B760M-Steel-Legend-WiFi)

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
    2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
    1 USB 3.2 Gen2 Type-A (Rear),
    6 USB 3.2 Gen1 (4 Rear, 2 Front),
    6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer



Unique Feature Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
Ultrafast Connectivity
– 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
CPU – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
Chipset Intel® B760
Memory – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN – 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3 + High speed class II
– Supports MU-MIMO
Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB – 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
Connector – 1 x eDP Signal Connector
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

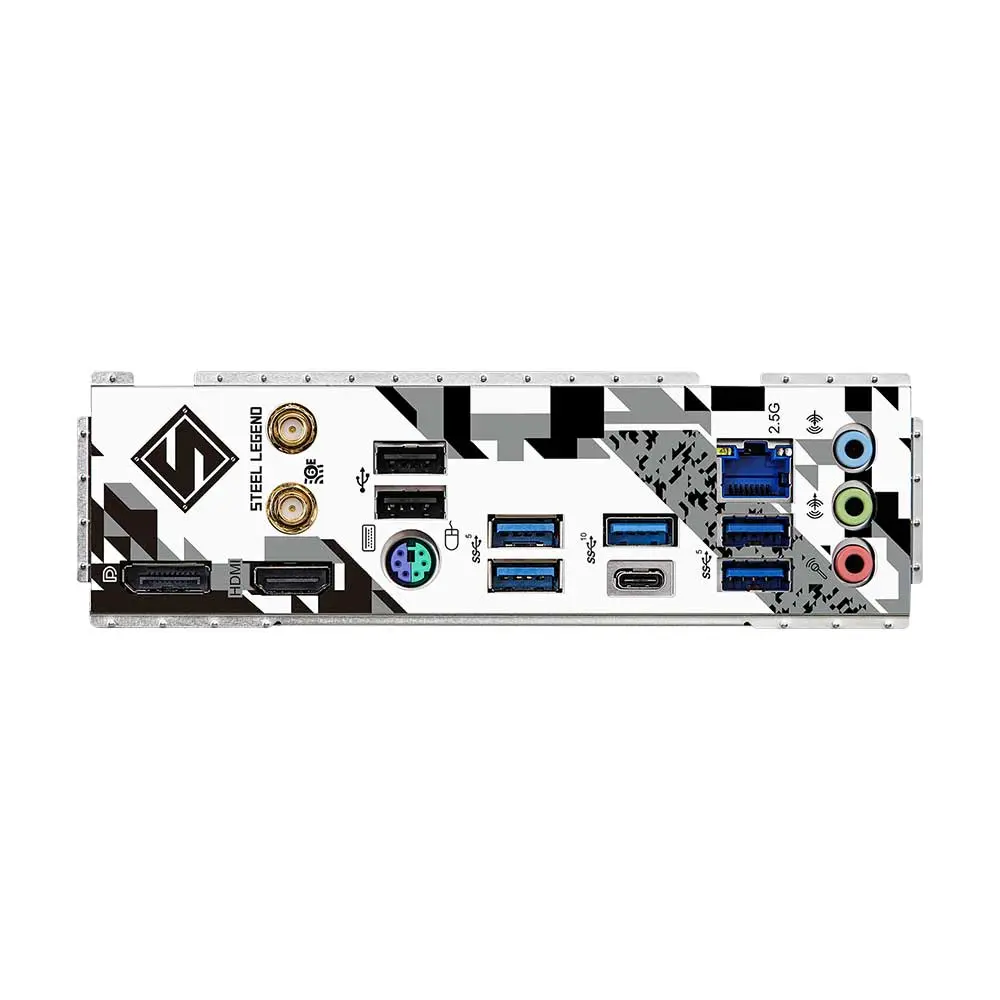

Rear Panel I/O – 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 4 x USB 3.2 Gen1 Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software & UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

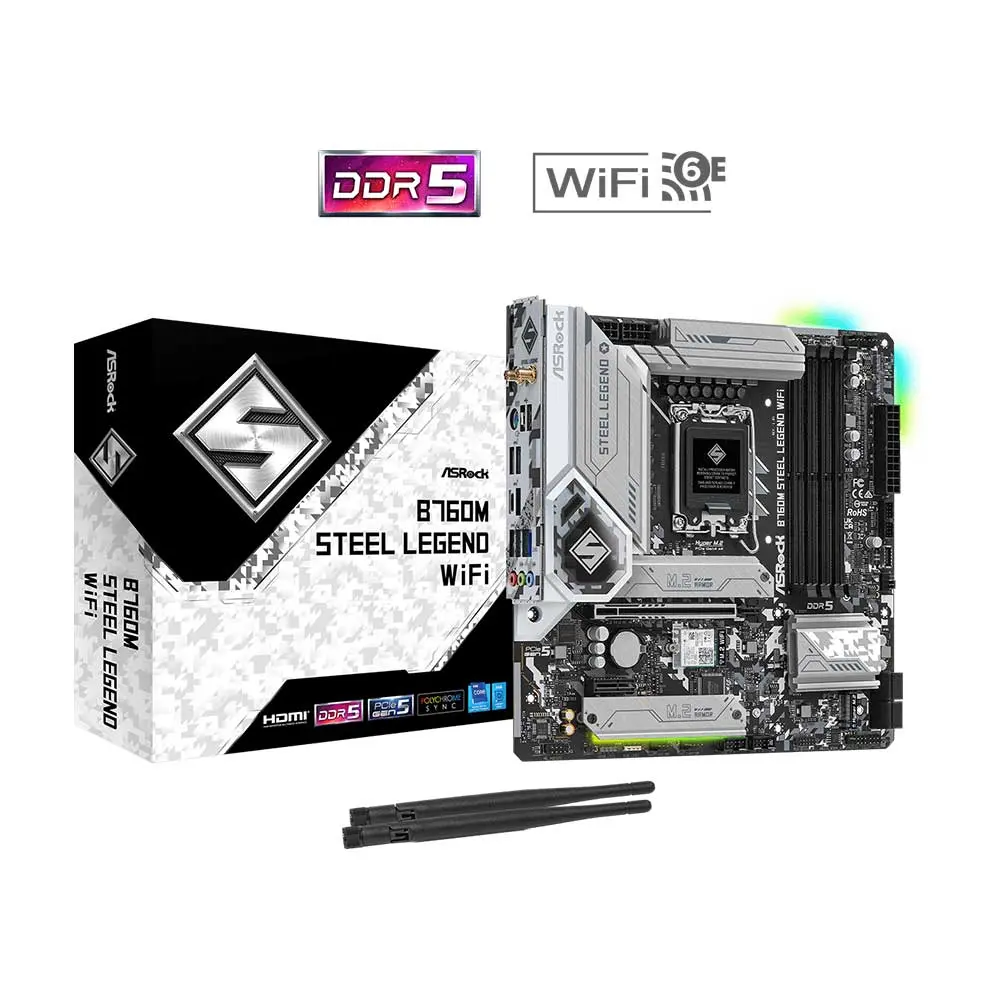

Accessories – 1 x User Manual
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 3 x Screws for M.2 Sockets
– 3 x Standoffs for M.2 Sockets
Form Factor – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
OS Microsoft® Windows® 10 64-bit / 11 64-bit
Certification FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
