Description
ASRock AMD Radeon RX 9060 XT Steel Legend OC 8GB GDDR6 Graphics Card
Clock: GPU / Memory
- Boost Clock*: Up to 3320 MHz / 20 Gbps
- Game Clock**: 2780 MHz / 20 Gbps
Key Specification
- AMD Radeon™ RX 9060 XT GPU
- 8GB GDDR6 on 128-Bit Memory Bus
- AMD RDNA™ 4 Architecture
- 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 5.0 Support
- 1 x 8-pin Power Connector
- 2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b
Key Features
- Polychrome SYNC

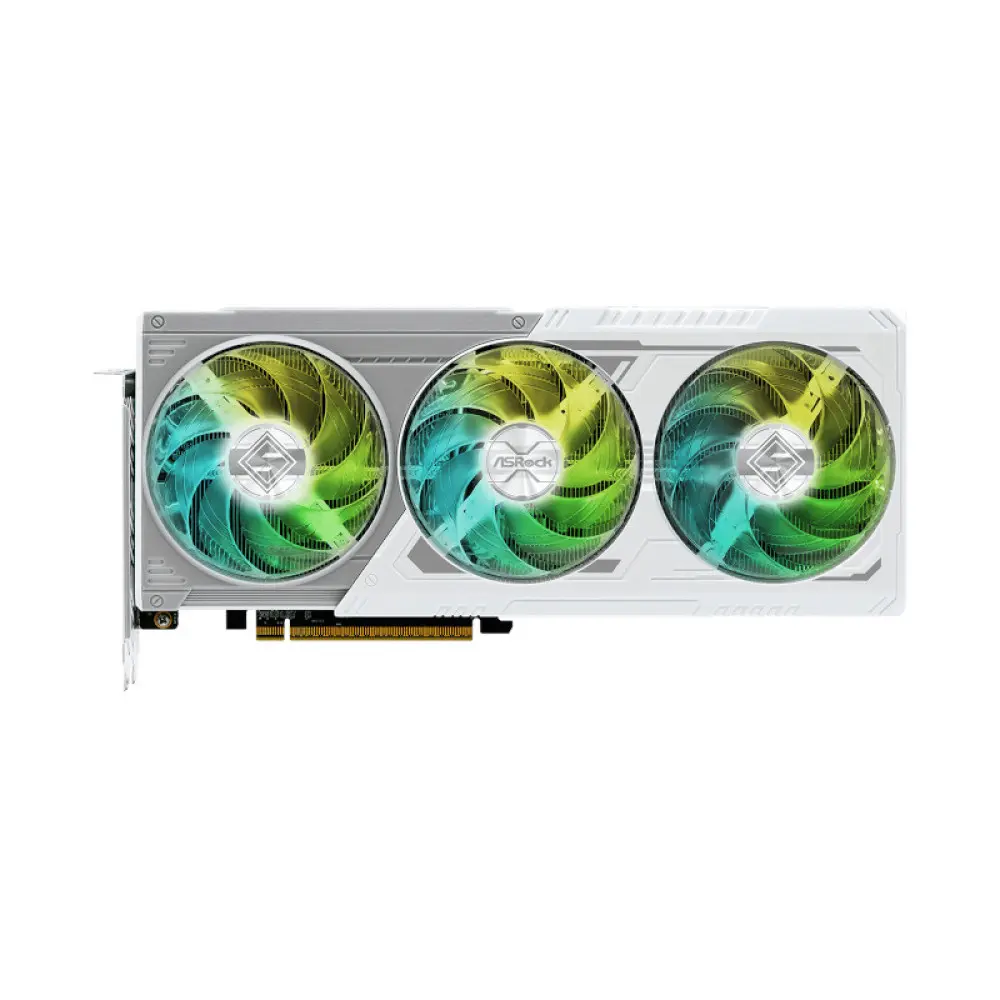

- Triple Fan Design
- Striped Ring Fan

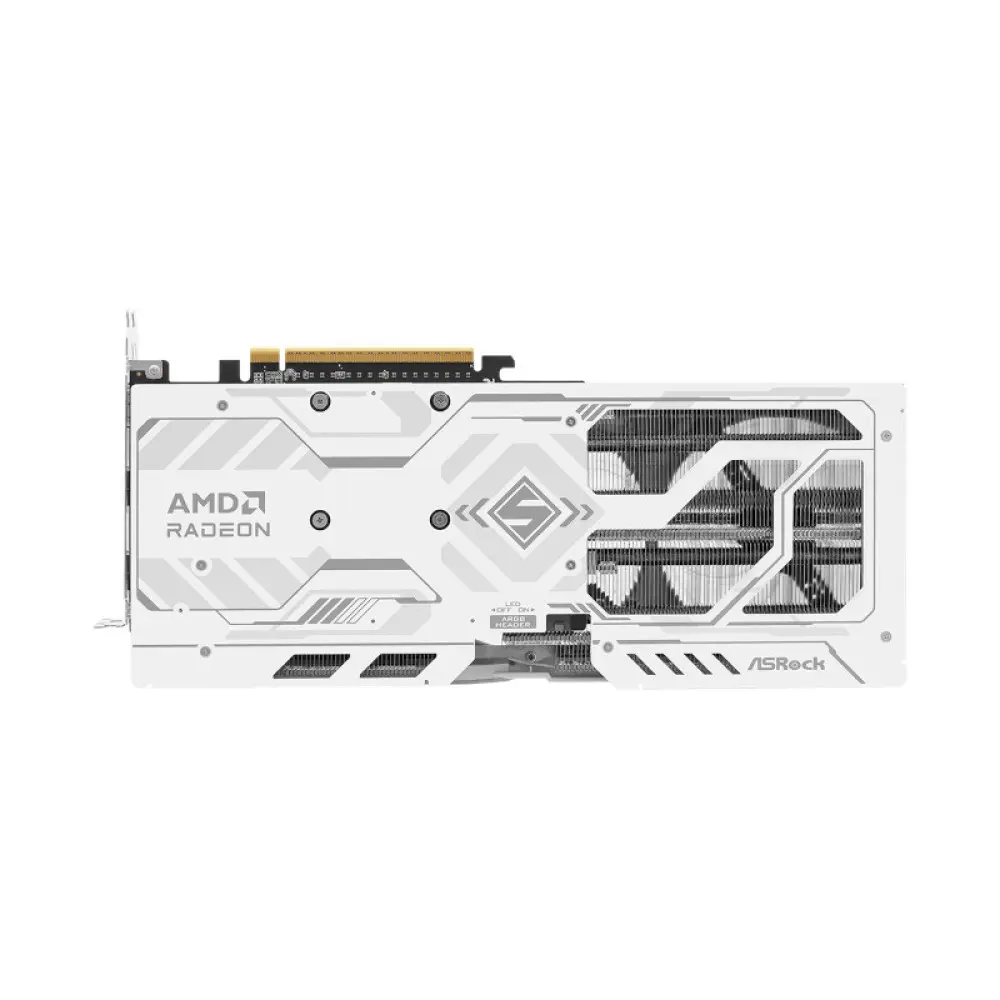

- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card
Specification | |
Graphics Engine | AMD Radeon RX 9060 XT |
Bus Standard | PCI® Express 5.0 x16 |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Memory | 8GB GDDR6 |
Engine Clock | Boost Clock*: Up to 3320 MHz
Game Clock**: 2780 MHz |
Stream Processors | 2048 |
Memory Clock | 20 Gbps |
Memory Interface | 128-bit |
Resolution | Digital Max Resolution: 7680×4320 |
Interface | 2x DisplayPort 2.1a
1x HDMI 2.1b |
HDCP | Yes |
Multi-view | 3 |
Recommended PSU | 550W |
Power Connector | 1x 8-pin |
Accessories | 1 x Quick Installation Guide |
Dimensions | 298 x 131 x 51 mm, 2.55-slot |
Net Weight | 967 g |
Warranty | 2 years |
Note* | Price, feature and specifications are subject to change without notice |
