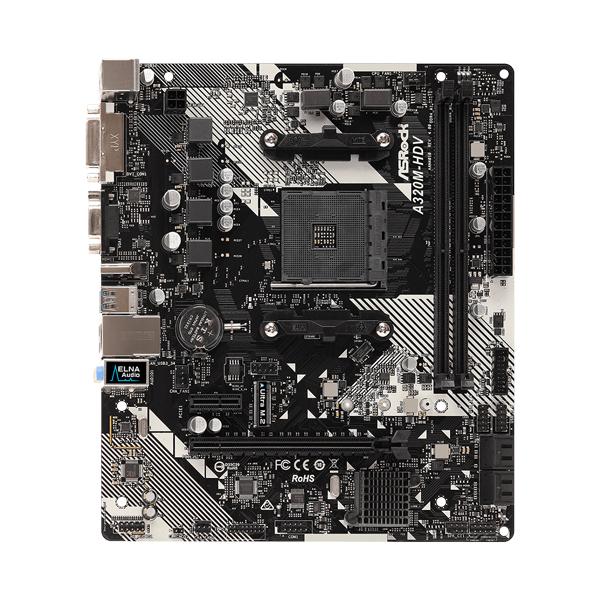

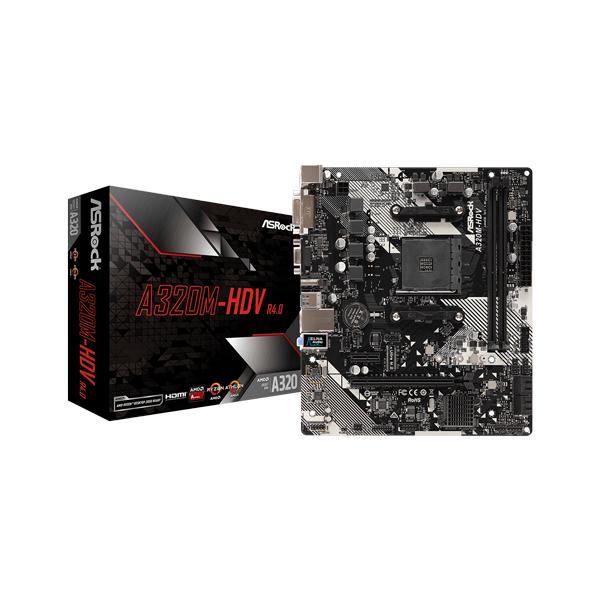

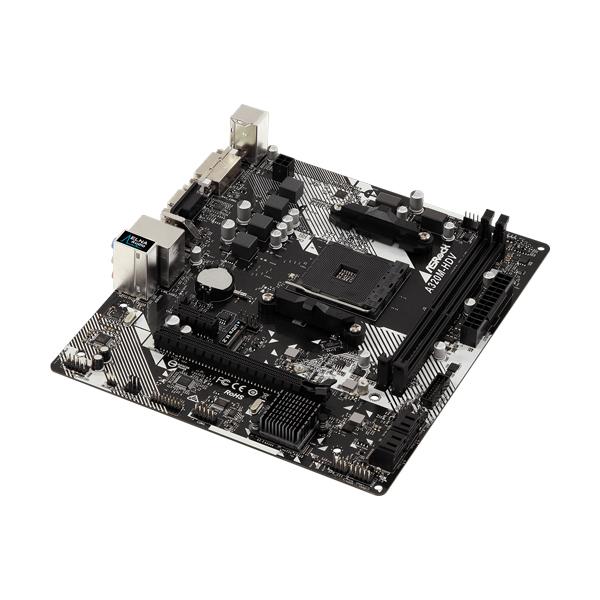

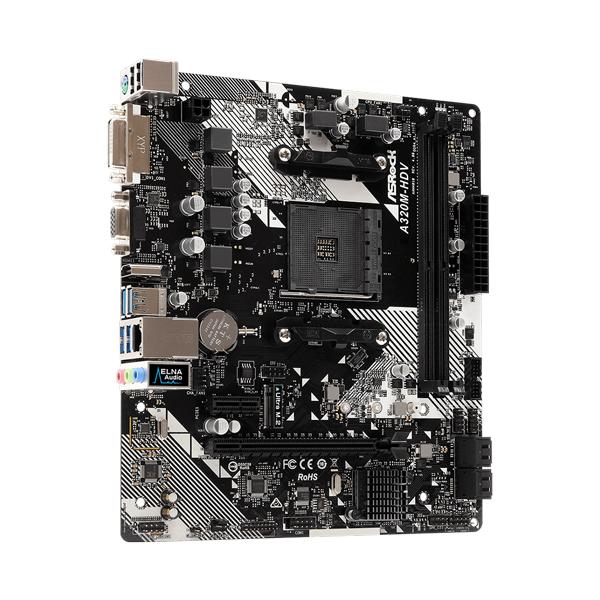

Asrock A320M-Hdv R4.0 Motherboard

Model No : A320M-HDV-R4.0

3,650.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

ASROCK A320M-HDV R4.0 MOTHERBOARD (A320M-HDV-R4.0)

FEATURES

  • AMD AM4 Socket
  • 2 DIMMs, Supports DDR4 3200+(OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output : HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • Actual support may vary by CPU.

SPECIFICATIONS

Unique Feature ASRock Super Alloy
– High Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU – Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– 6 Power Phase design
– Supports CPU up to 105W
Chipset – AMD Promontory A320
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 32GB**
– 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment
Graphics – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.
Audio – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
– Supports Surge Protection
– ELNA Audio Caps
LAN – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*- 1 x PCI Express 2.0 x1 Slot*Supports NVMe SSD as boot disks
Storage – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector – 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

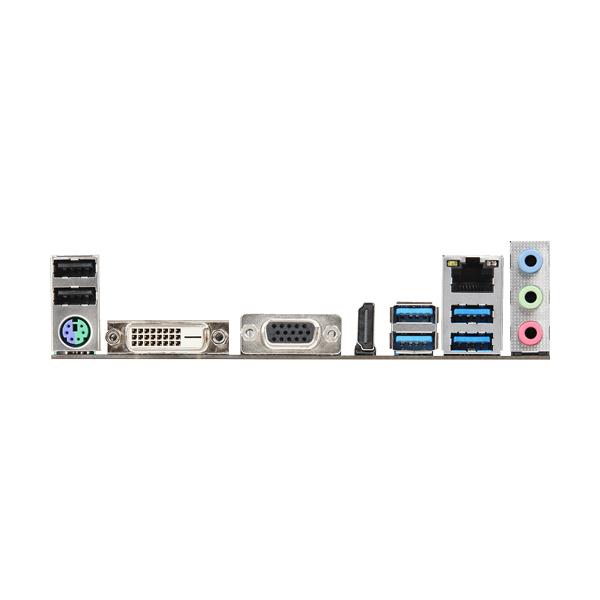

Rear Panel I/O – 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitor – CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design
OS – Microsoft® Windows® 10 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
