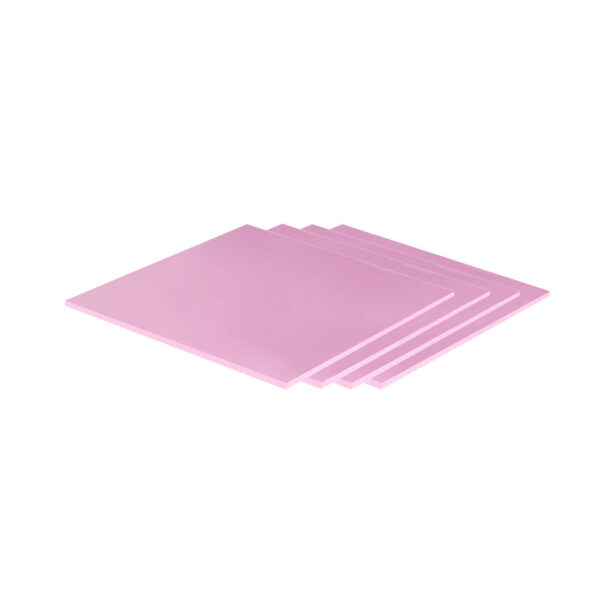

ARCTIC THERMAL PAD APT2012 100x100mm 1mm THICKNESS (ACTPD00021A)
GREAT PRICE/PERFORMANCE RATIO
The Thermal Pad APT2012 is the ideal, budget-friendly choice for situations that require thermal transmission without needing particularly high performance.
USING THERMAL PADS
Thermal pads can be easily cut to the desired shape and size and can be used to ensure adequate temperature transfer on, among other things, RAM heat sinks and single-board computers.
With its low rigidity and good compression properties, the thermal pad serves as a perfect gap filler and easily bridges uneven surfaces and air gaps.
EASY INSTALLATION AND SAFE HANDLING
ARCTIC thermal pads are non-adhesive and can be precisely positioned.
The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since no damage can occur, even in contact with electrical components.
AVAILABLE IN DIFFERENT STRENGTHS AND PACKAGES
Each package contains 4 pads.
|Hardness||35 Shore OO|
|Continuous Use Temperature||-40~150 ℃|
|Specific Gravity||2.3 g/cm³|
|Tear Strength||0.4 KN/m|
|Thermal Conductivity||1.2 W/(m K)|
|Dielectric Constant @1Mhz||3,9|
|Volume Resistance||1 X 1012 Ω-cm|
|Flammability Rating||UL 94 V-0|
|Note**||**Prices, Features & Specifications are subject to change without notice|
