Description

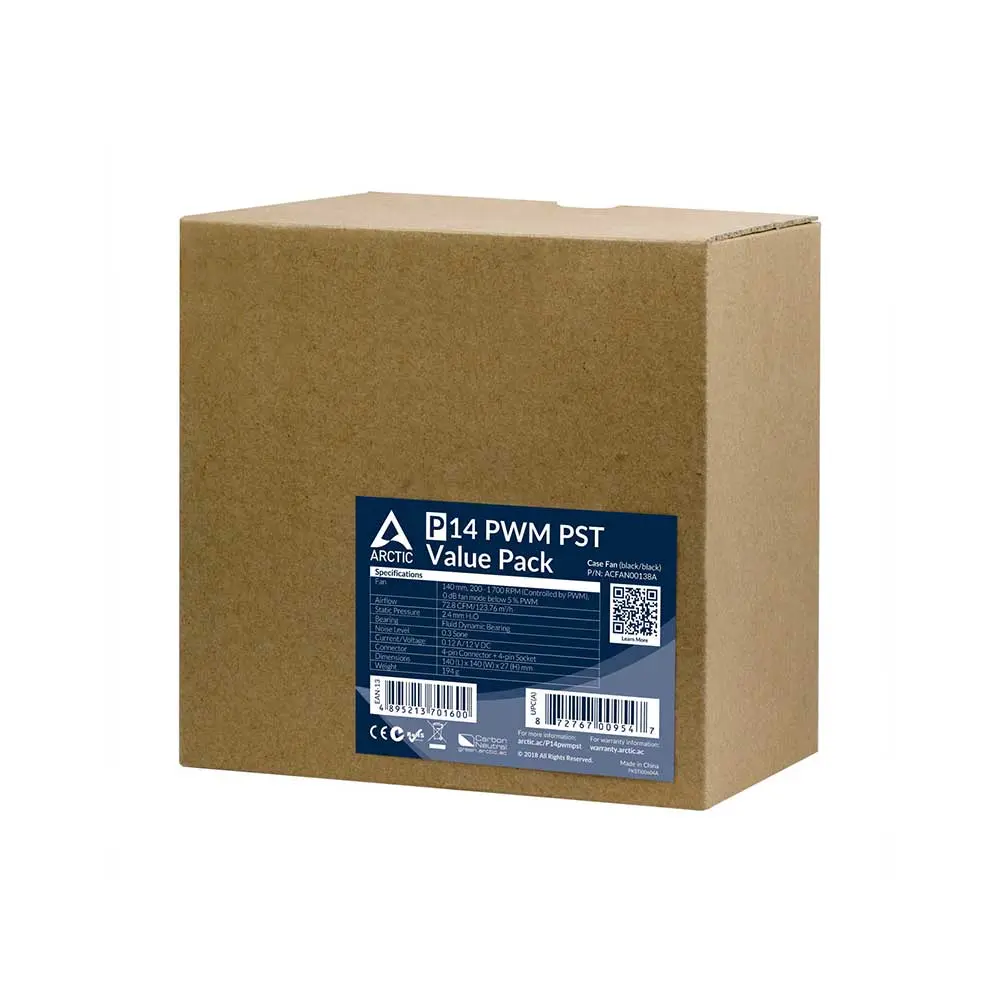

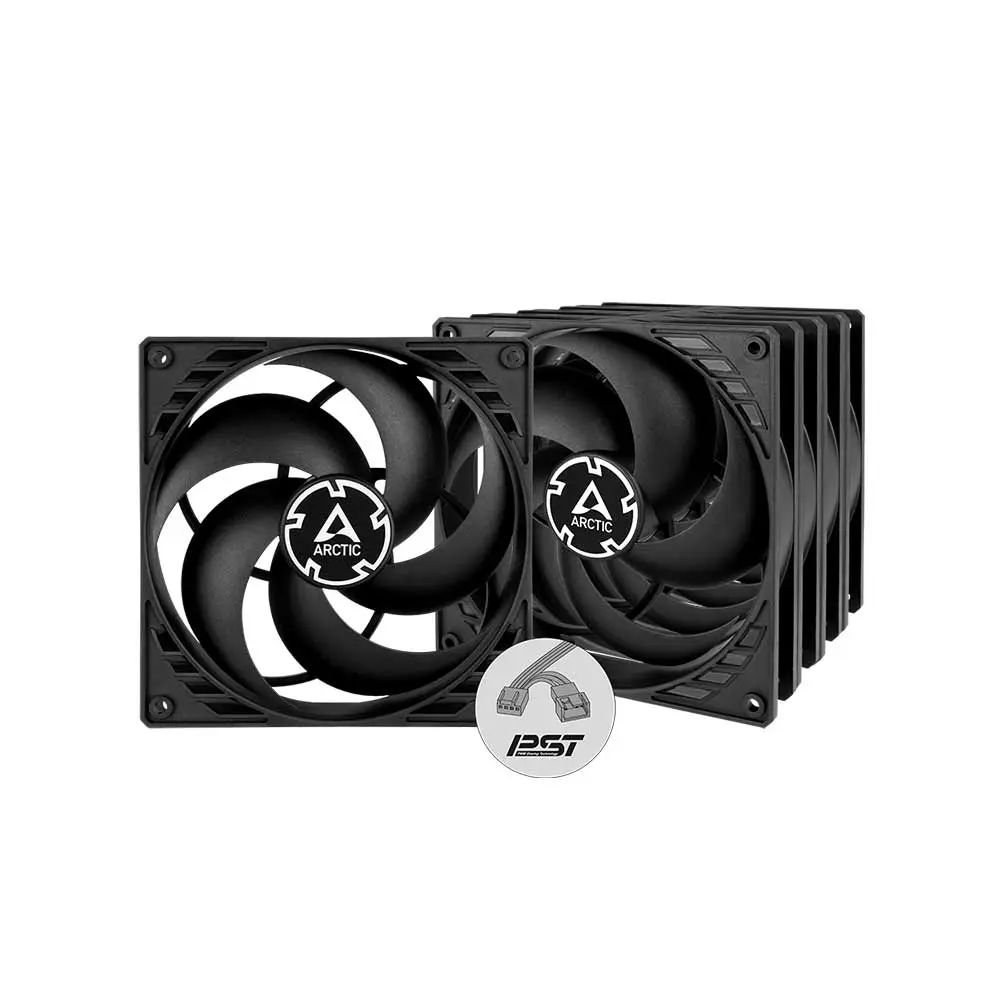

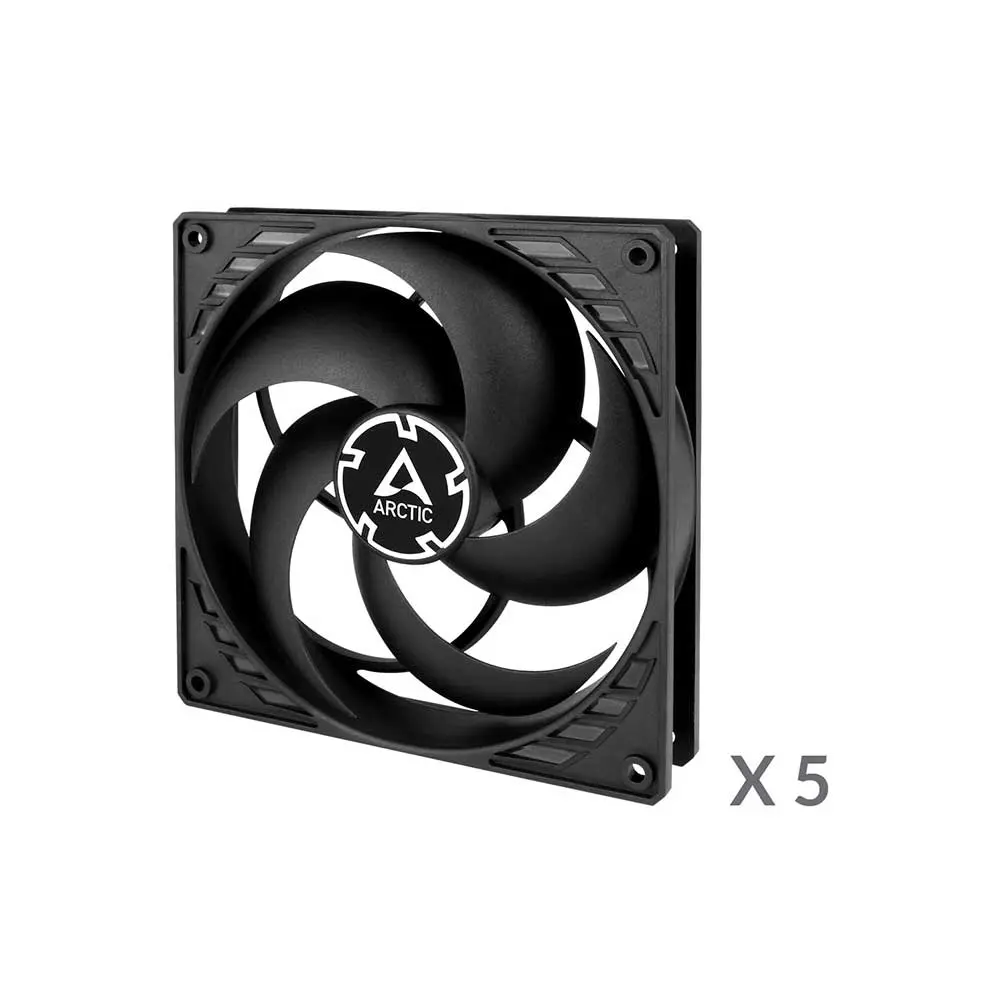

Arctic P14 Pwm Pst 140mm Cabinet Fan 5 Pack Black
During the development of the new Arctic P14 Pwm Pst 140mm, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
General Specifications | |
Performance | |
Fan Speed | 200—1700 rpm PWM Controlled (0 rpm below 5 % PWM) |
Airflow | 72.80 cfm | 123.76 m³/h |
Static Pressure | 2.40 mmH2O |
Noise Level | 0.3 Sone |
Fan | |
Fan Frame | Standard |
Control Type | PWM PST |
Connector | 4-Pin Connector + 4-Pin Socket |
Fan Bearing | Fluid Dynamic Bearing |
Operating Ambient Temperature | 0—40 °C |
Electric Characteristics | |
Typical Voltage | 12V DC |
Starting Voltage | 3.9V |
Current | Voltage | 0.12 A | 12 V DC |
Cable Length | 400mm |
Size & Weight | |
Length | 140mm |
Width | 140mm |
Height | 27mm |
Weight | 194g |
Warranty | 6 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
