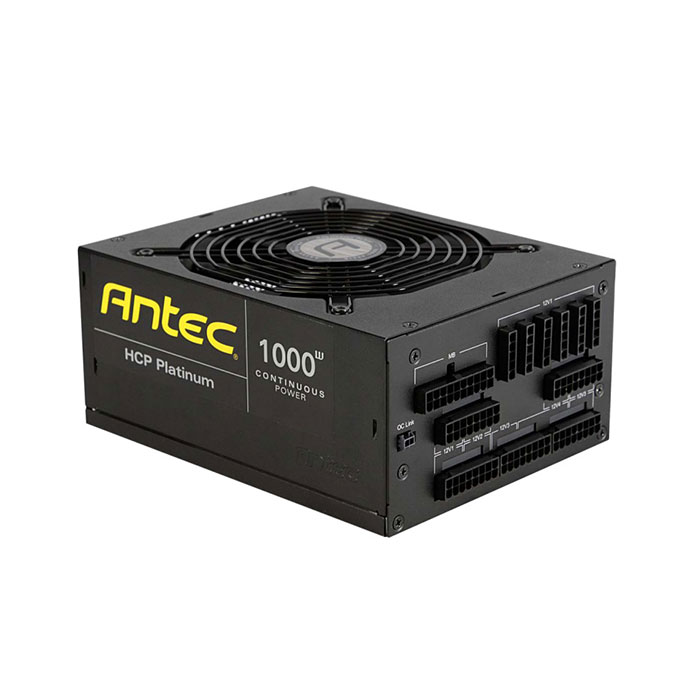

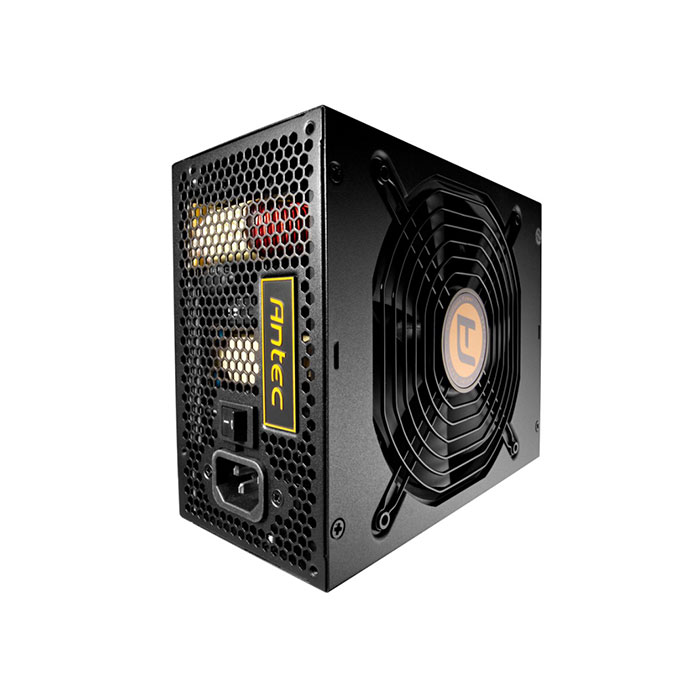

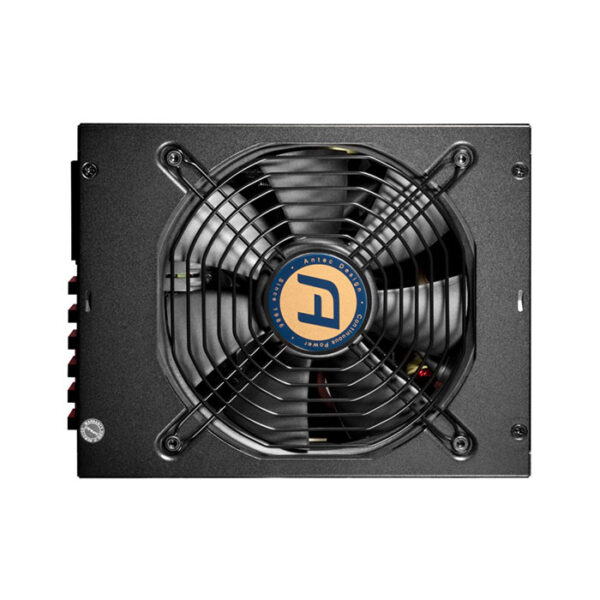

Antec Smps Hcp-1000 – 1000 Watt 80 Plus Platinum Certification Fully Modular Psu

Description

FEATURES

• 1000W Continuous Power – Guaranteed 1000W of Continuous Power from Antec
• 80 PLUS PLATINUM certified – Up to 94% efficient, to reduce your electricity bill
• Save Energy and Money – Reduce your electricity bill by up to 25%
• AQ7 – Antec Quality 7 year warranty and lifetime global 24/7 support
• 16-pin Socket – Industry-leading 16-pin sockets double the modular connectivity by
• supporting 2 different 8-pin cables per socket and allow for future connector changes
• 28(20 8)-pin MBU socket – World’s first socket for possibe future MBU connectors
• 135 mm DBB Silence – Whisper-quiet high-quality double ball bearing fan with long lifetime
• Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
• High Current Rails – 4 High Current 12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• 100% 12V – Output for maximum CPU & GPU support
• Multi PCI-E – 6 PCI-E connectors for multiple GPU support
• CircuitShield – Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP),
• Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)
• All Japanese Heavy-Duty Caps – All high-performance Japanese capacitors ensure tightest DC stability and regulation
• ErP Lot 6: 2013 – Compliant to the toughest energy standard available
• PhaseWave Design – A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• Stealth Wires – All wires darkened for minimal visibility in chassis
• OC Link™ – Allows 2 HCP Platinums to work in tandem to power the most demanding systems

PRODUCT SPECIFICATIONS

• Power: 1000W
• Certified: 80 PLUS PLATINUM
• Socket: Industry-leading 16-pin sockets double the modular connectivity 2 different 8-pin cables per socket and allow for future connector changes
• Silence: 135 mm DBB
• Multi PCI-E: 6 PCI-E connectors for multiple GPU support
• Caps: All high-performance Japanese capacitors ensure tightest DC stability and regulation
• Input Voltage: 100VAC – 240VAC ~ ±10% (Active PFC)
• Input frequency Range: 50Hz – 60Hz, 13A – 6.5A
