No Payment Gateway Charges

EMI Options Available on Cart Value above ₹4000.

20,999.00

SKU: X8000A506-18 Categories: ,

Description

ANTEC SIGNATURE 1300 PLATINUM PSU (X8000A506-18)

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

Model X8000A506-18
Type ATX
Modular Fully
Dimension (W x L x H) 150 x 170 x 86mm
Warranty 10 years
Input Voltage 100-240
Input Current 15A ~ 7.5A
Input Frequency Range 47Hz ~ 63Hz
PFC APFC
PFC at half / full load:
>0.95 at AC 110v 60Hz(typical)
>0.90 at AC 230v 50Hz(typical)
Power Good Signal 100 ~ 500mS
Efficiency At 20% / 50% / 100% load AC 115V internal,
the power efficiency should be at least 90% / 92% / 89%.
Protection OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity 1300W
Operation Temperature 0 ~ 40°C
Regulatory CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM
Fan 135 x 135 x 25(mm) FDB Silent Fan
Certifications 80 Plus Platinum

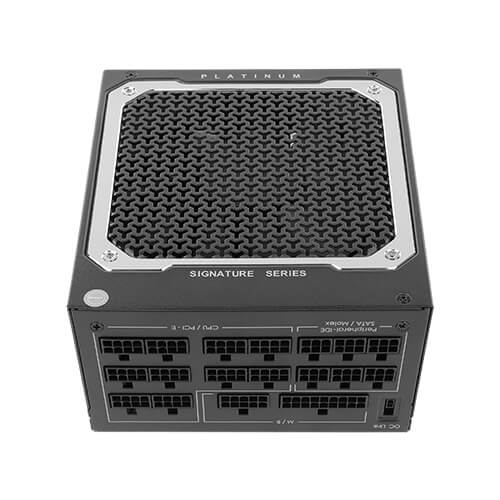

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
12 x 8(6+2) Pin PCI-E
14 x SATA
5 x Molex
1 x FDD
UPC# 0-761345-11705-0 SP1300
0-761345-11706-7 SP1300 AU
0-761345-11707-4 SP1300 EC
0-761345-11708-1 SP1300 GB
0-761345-11709-8 SP1300 JP
Net Weight 2.12 Kgs
Gross Weight 4.05 Kgs

Additional information

brand

psu-certification

psu-modularity

psu-wattage
