Description

  • Guaranteed 1000W of Continuous Power from Antec
  • 100% Modular-Improves airflow and reduces clutter
  • 80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
  • PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
  • 16 pin Socket-Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
  • Antec Quality 10-year warranty and lifetime global 24/7 support
  • 135mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
  • Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
  • 99%+12V – Output for maximum CPU & GPU support
  • CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
  • 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
  • 28(18+10) pin MBU socket – For possible future MBU connectors
  • ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
  • HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
Power Supply
Dimension (W x L x H)160(L) x 150(W) x 86(H)
Input Voltage100-240 VAC ±10%
TypeATX 12V 2.4
Input Frequency Range50Hz-60Hz
PFCActive PFC (>0.9 typical)
Fan*135mm FDB Fan
Power Good Signal100-500ms
Efficiency92% Typically
ModularFully Modular
ProtectionOCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity1000W
Operation Temperature0~50°C
RegulatorycTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR
Certifications80 Plus Gold

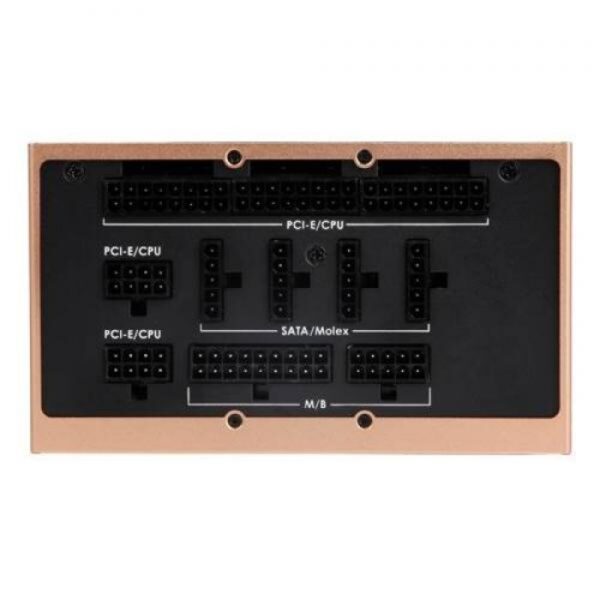

Connector1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 8 x 8(6+2) Pin PCI-E 12 x SATA 6 x Molex 1 x FDD
Model*HCG1000 Extreme
Warranty**10 years
Note**Price, feature and specifications are subject to change without notice.
