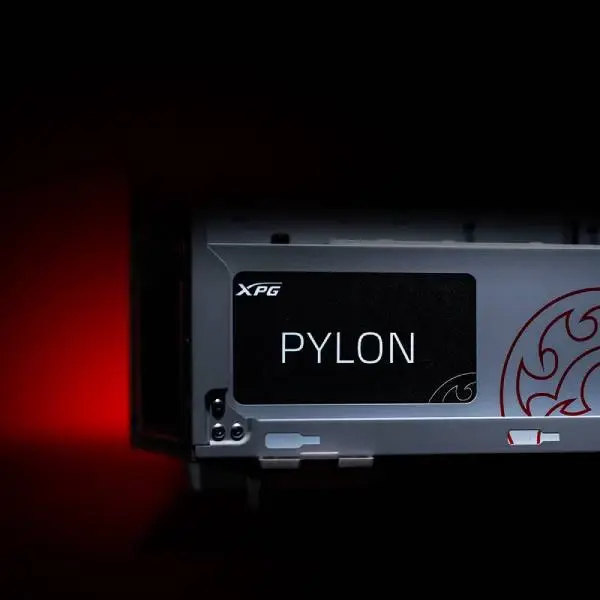

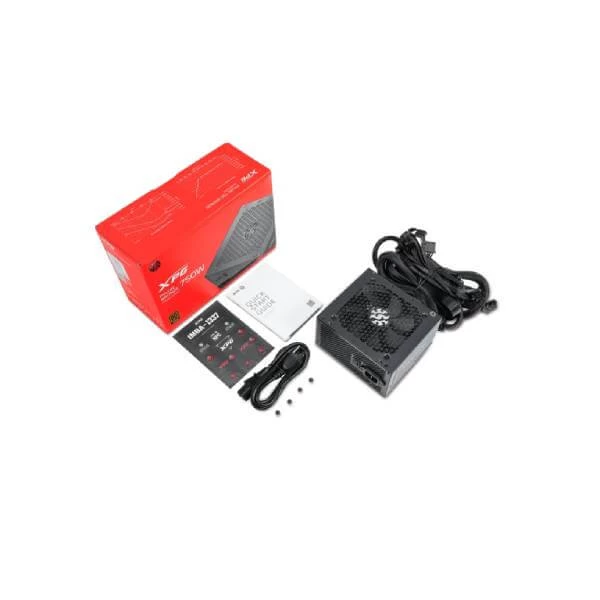

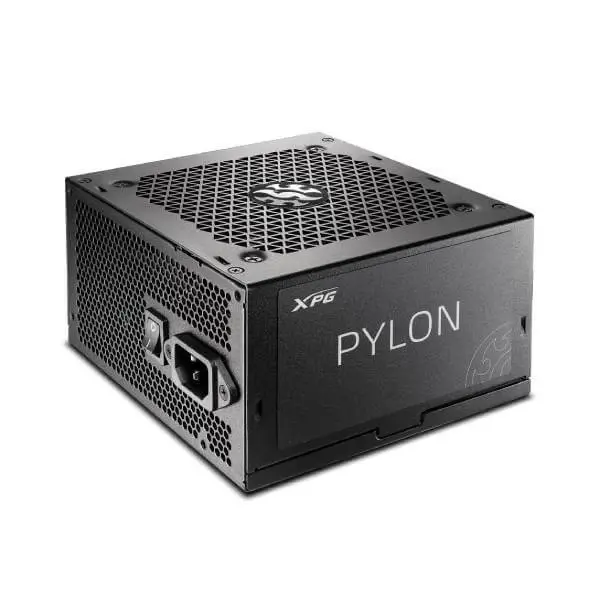

Adata Xpg Pylon 750 Watt 80 Plus Bronze Power Supply (XPG-PYLON-750W)

Model No : XPG-PYLON-750W

5,200.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

Adata Xpg Pylon 750 Watt 80 Plus Bronze Power Supply (XPG-PYLON-750W)

Features

XPG PYLON Power Supply Unit

  • DC to DC Converters
  • 80PLUS BRONZE Certified
  • Continuous Power for 24/7 system operation
  • 120mm FDB Silent-Performance Fan
  • High Current +12V rail system compatibility
  • Main Japanese Capacitor
  • Multiple PCI-E 2.0 6+2 Pin Connectors
  • ndustrial-Level Protection OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP
  • Complies with ErP 2014 Lot 3
  • RoHS Compliance

XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

DC-to-DC Circuit in BRONZE Grade

XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.

(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.

80 Plus Bronze Certification

XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.

Cybenetics ETA and LAMBDA Certified

XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.

For more information on XPG PYLON’s Cybenetics certifications, please visit XPG

120mm Fluid Dynamic Bearing (FDB) Fan

The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.

Main Japanese Capacitor at 105°C

High quality 105°C Main Japanese Capacitor in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.

8 Industrial-Level Protections

XPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.

Specifications

Dimensions (L x W x H) 150 x 140 x 86mm
80 PLUS RATING BRONZE
ATX Version Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)
Protections OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
PFC 0.99
Input Voltage 100-240V
Input Current 750W:10A/5A
Input Frequency 50Hz – 60Hz
Operating Temperature 50℃
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Fan Speed 2,000 RPM
Noise Level NA
MTBF 100K Hours at 25℃
ATX 24 Pin Connector 1
EPS 8 (4+4) Pin Connector 1
SATA Connector 8
Peripheral 4 Pin Connector 1
PCI-E 6+2 Pin Connector 4
Warranty 5 Years
Note *** Features, Price, Specifications are subject to change without notice.
