Description

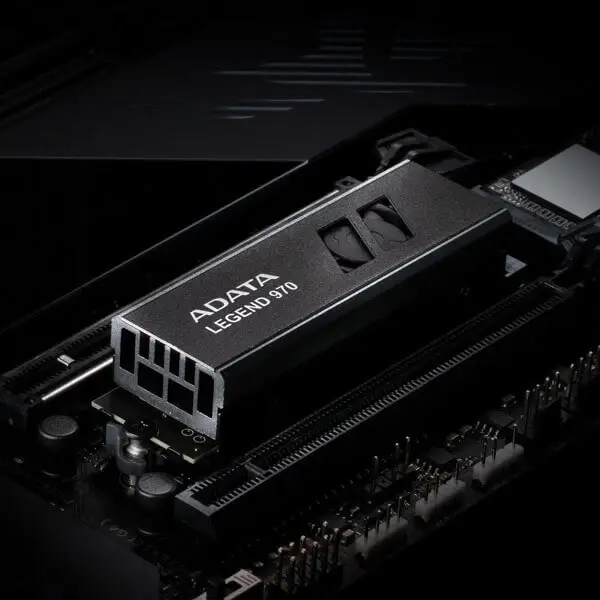

Adata Legend 970 2000GB M.2 Gen5 NVMe Internal SSD
Adata Legend 970 2000GB Capacity and supports the latest PCIe Gen5 x4 transmission interface. It also supports the latest Intel and AMD platforms, adopts a LDPC error correction mechanism to ensure the security of files
Features:
- PCIe Gen5 x4 transmission interface
- Up to 10,000/10,000MB/s sequential read/write speed
- Dual-layer aluminum alloy and fan forms a patented active air cooling system
- Compared with a fanless heat sink, temperatures significantly reduced by 10%
- Surface crystallization improves thermal conductivity
- Operates long-term without slowing down or crashing
- 2000GB capacity
- Supports latest Intel and AMD platforms
- 5-year warranty
Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.
Unreal Performance
Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB/ per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.
Surface Crystallization Improve Heat Dissipation
The LEGEND 970’s aluminum alloy fins are treated with surface crystallization, which utilizes its physical properties to increase the overall air contact area and maximize the effectiveness of its air cooling system.
QuiKTIPS : Never Experience Throttling Again
High-speed PCIe 5.0 transmission requires powerful heat dissipation. If heat is not dissipated quickly, data read/writes speeds will be adversely affected and the drive itself crashing is a possibility. The LEGEND 970’s active heat dissipation mechanism withstands high temperature test and can maintain stable performance even during long bouts of high speed operation.
High Quality Memory Components
Strict selection of 232-layer 3D flash memory gives the LEGEND 970 a capacity of up to 2000GB and it utilizes a variety of data protection and correction technologies to increase total bytes written (TBW) and durability to meet various high-load requirements.
Superior Technology
LEGEND 970 leverages the advantages of a SLC cache algorithm and DRAM Cache Buffer while featuring 4K random read/write IOPS up to 1,400K/1,400K, further improving the efficiency of multi-file processing. The LEGEND 970 also adopts a LDPC (Low Density Parity Check Code) error correction mechanism and AES 256-bit high-level encryption technology to ensure the accuracy of data transmission and the security of files.
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
Specifications:
Model Number | SLEG-970-2000GCI |
Capacity | 2000GB |
Form factor | M.2 2280 |
NAND Flash | 3D NAND |
Controller | Phison PS5026 E26 |
Dimensions (L x W x H) | 80.6 x 24.2 x 17.9mm / 3.17 x 0.95 x 0.7inch |
Weight | 57.1g / 2.01oz |
Interface | PCIe Gen5 x4 |
Sequential Read (Max) | 10,000 MB/s |
Sequential Write (Max) | 10,000 MB/s |
4KB Random Read IOPS(Max) | 1,400K |
4KB Random Write IOPS(Max) | 1,400K |
Operating temperature | 0°C – 70°C |
Storage temperature | -40°C-85°C |
MTBF | 1,600,000 hours |
Terabytes Written (TBW) | 1400TB |
Warranty | 5 Years limited warranty |
Note | *** Features, Price, Specifications are subject to change without notice. |
